Planar DirectLight Slim Series
Ultra-thin, narrow MicroLED displays for tight curves and space-constrained installations
LED Video Wall Made in Europe Ultra-thin, narrow width MicroLED displays designed to accommodate tight curves and space-constrained installations. Available Pixel Pitches: 0.9, 1.2, 1.5, 1.8mm
Planar® DirectLight® Slim Series indoor fine pixel pitch MicroLED displays deliver vivid visualization in an ultra-thin, narrow width form factor that facilitates a variety of deployment applications. The slim shape enables both tightly curved and flat video walls with minimal depth and front serviceability. This video wall offers high bandwidth and remote power for mission-critical applications requiring 24×7 operation. The DirectLight Slim Series is manufactured in Europe, ensuring quick lead times, stable pricing and shorter shipping distances.
- 0.9, 1.2, 1.5, & 1.8mm pixel pitches
- Featuring MicroLED technology
- Innovative narrow cabinet design for curved video walls with minimal color shift
- Ultra-thin profile of less than 35mm with full front serviceability
- Low Power Model with standard 500-nit brightness
- EverCare Lifetime Warranty
- Made in Europe
Overview
Highlights

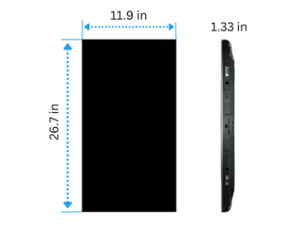

Uniquely Designed for Unique Spaces
Designed with a narrow form factor and an ultra-slim profile of less than 2″ deep, Planar DirectLight Slim Series cabinets enable versatile applications such as curves and column wraps, while their compact design is ideal for maximizing space in constrained environments.

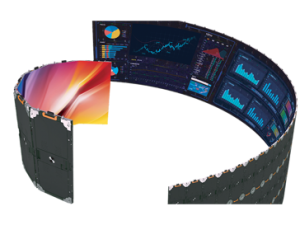

Tight Curves
The narrow cabinet design enables faceted, concave, curved video walls that surround viewers with content. These video walls support applications such as simulation and training, research, broadcasting, virtual production, extended reality, and hospitality.

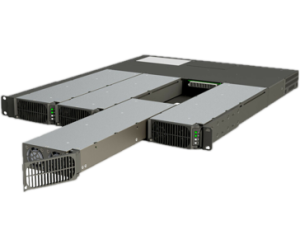

Reliable Off-Board Power
The Planar® Remote Power Supply (RPS) removes heat, depth, noise, weight, service points, and power outlets from the video wall and into a rack room. Featuring n+1 redundant, hot-swappable power modules, the Planar RPS is available in 110V and 220V and has a low-power standby mode when not in use 24×7.

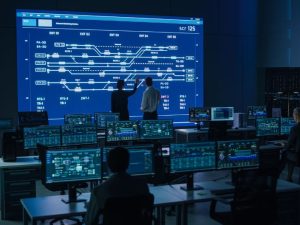

Energy-Conscious Model
Our Low Power model delivers 500 nits of brightness while consuming only 68 watts of power, making it ideal for energy-conscious customers or applications with low ambient light.

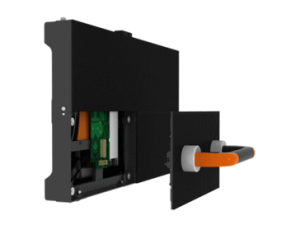

Easy Access
Front installation and service reduces the overall video wall footprint and service space required behind the wall, making it easier to fit into more spaces than other LED video wall solutions.
High Bandwidth
With 5x the bandwidth of competitive solutions, the displays reduce total cost of ownership with fewer cabinets, cables, and internal components such as receivers and power supplies.

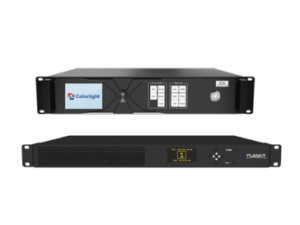

Flexible Control
The Planar® WallDirector™ Video Controller provides robust, standardized processing while its compatibility with Colorlight allows customers to select the ideal solution for their application’s specific needs.
Lifetime Protection
The Planar DirectLight Slim Series is protected by the EverCare™ Lifetime Limited Warranty, which covers the entire display, from the sub-pixels to the video controller, for as long as it is used in a fixed location.
Made in Europe
Thanks to our state-of-the-art production facility in the heart of Europe, Leyard Middle East can guarantee stable prices, short delivery times of just a few weeks, and high quality standards.
Add-Ons & Accessories
Planar WallDirector Cloud
Remotely monitor and maintain your display fleet with Planar® WallDirector™ Cloud, a secure, web-based dashboard for diagnostics, commands, troubleshooting, health monitoring and support tickets.
Add Durability
Planar® ERO-LED™ (Extended Ruggedness and Optics™) proprietary protective coating provides durability in high-traffic and interactive environments. It offers a matte finish that maintains the visual performance of the video wall.
Specifications
| Feature | DLSlim 0.9M20 | DLSlim 1.2M20 | DLSlim 1.5M20 | DLSlim 1.8M20 | DLSlim 0.9M05 | DLSlim 1.2M05 | DLSlim 1.5M05 | DLSlim 1.8M05 |
|---|---|---|---|---|---|---|---|---|
| Pixel Pitch (mm) | 0.945mm | 1.26 x 1.25mm | 1.575mm | 1.89mm | 0.945mm | 1.26 x 1.25mm | 1.575mm | 1.89mm |
| LED Type | MicroLED FlipChip | |||||||
| Cabinet Resolution (WxH) | 320 x 720 | 240 x 544 | 192 x 432 | 160 x 360 | 320 x 720 | 240 x 544 | 192 x 432 | 160 x 360 |
| Brightness, max. (cd/m²) | 2000 nits | 2000 nits | 2000 nits | 2000 nits | 500 nits | 500 nits | 500 nits | 500 nits |
| Contrast Ratio | 10000:1 | |||||||
| HDR (High Dynamic Range) | Yes | |||||||
| Cabinet Size (WxHxD) | 302.4 x 680.4 x 34mm (11.91 x 26.79 x 1.34in) | |||||||
| Module Composition (WxH) | 1 x 4 | |||||||
| Service Access | Front Access, module removal. All internal electronics accessible | |||||||
| Installation | Standard Flat Wall | Forward Tilt: up to 10° | 90° exterior corners | Concave faceted curve | |||||||
| Line Voltage | 100~240V AC, 50/60Hz | |||||||
| Warranty | EverCare Limited Lifetime Warranty | |||||||
| Power Consumption, max. (W/Cabinet) | 145 W | 145 W | 145 W | 145 W | 68 W | 68 W | 68 W | 68 W |
