Leyard VDS Series
Leyard Middle East’s Breakthrough Generation of MicroLED Displays
The Leyard VDS Series is Leyard Middle East’s latest MicroLED technology using Chip on Board (COB) technology. COB MicroLED technology is becoming increasingly popular and Leyard Middle East has developed the VDS Series to provide a state-of-the-art visualization solution. Using this technology allows the display to achieve extremely large viewing angles and high contrast ratios. All this while maintaining a very high power efficiency ratio. In addition, it comes packed with the latest 5G technology for easy installation and cabling.
The VDS Series offers 0.7, 0.9, 1.2 and 1.5mm pixel pitch models, all of which are fully installable and serviceable from the front. With a 27″ 16:9 cabinet, the VDS Series is perfect for Full HD, 4K and 8K setups. Combined with its protective coating, it is ideal for public spaces such as airports, train stations, museums and lobbies.
- 0.7, 0.9, 1.2, 1.5mm pixel pitch
- Latest COB MicroLED technology
- Very robust
- Full front installation and service
- Efficient power consumption
- Low power standby
- 5G signal architecture
Overview
Product Features

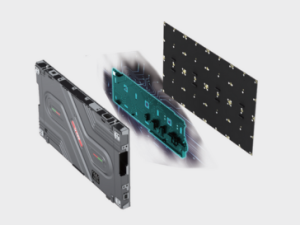

COB – Chip on Board Technology
The advanced COB technology ensures a low power consumption, a high contrast and a wide viewing angle of up to 170 degrees.
5G Architecture
VDS Series models offer 5x the bandwidth of competitive solutions, reducing the installation time as less cabling is needed.
Built-In Low-Power Standby Option
By sending a command through the processor, the cabinets can be placed in a low-power standby mode, reducing power consumption to as little as 3 W per m².

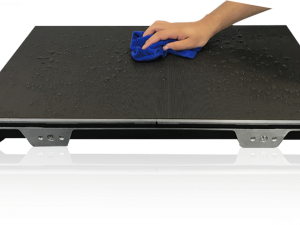

Advanced Hardness
The VDS Series features a protective COB layer that is designed to give it a hardness rating of 4H.

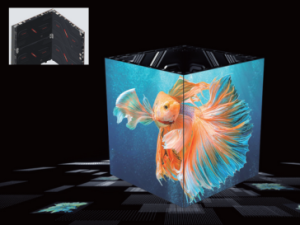

Corner Setup
For those situations where an angle is required, Leyard’s VDS models offer 90° corner installation with only a 2mm gap.

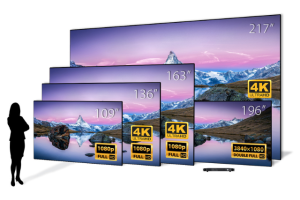

Complete™ Solutions
Off-the-Shelf or Customized Video Walls
Leyard VDS Complete video wall displays reduce the time, complexity and cost of designing and installing an LED video wall. We’ve packaged everything an organization needs into one complete solution. Simply select the video wall size and resolution that best suits your environment and application, and you get the complete package, including a powerful video controller, mounts, cables, trims, spares and touch frames for our optional touch models.
Included:
- ✔️ LED Display Cabinets
- ✔️ Video Controller
- ✔️ Puck Mount
- ✔️ Trims & Cables
- ✔️ Spares
- ✔️ Optional: IR Touch Frame
Available Sizes: 106″ | 136″ | 163″ | 196″ | 217″
Available Sizes (Touch Models): 81″ | 108″ | 136″ | 163″ | 196″
Specifications
| Specification | VDS007 | VDS009 | VDS012 | VDS015 |
|---|---|---|---|---|
| Pixel Pitch (mm) | 0.78 | 0.935 | 1.25 | 1.56 |
| Brightness, max. (cd/m²) | 600 | 600 | 600 | 600 |
| LED Type | Flip-Chip MicroLED COB | Flip-Chip MicroLED COB | Flip-Chip MicroLED COB | Flip-Chip MicroLED COB |
| Operating Mode | 24×7 | 24×7 | 24×7 | 24×7 |
| Color Bit Depth | 16 Bit (281 trillion colors) | 16 Bit (281 trillion colors) | 16 Bit (281 trillion colors) | 16 Bit (281 trillion colors) |
| Cabinet Resolution (WxH) | 768×432 | 640×360 | 480×270 | 384×216 |
