Planar DirectLight Pro Series
Bright premium indoor MicroLED solution with high efficiency, high bandwidth and wide controller range
LED Video Wall Made in Europe Bright premium indoor MicroLED solution with high efficiency, bandwidth and broad controller compatibility. Available pixel pitches: 0.9, 1.2, 1.5, 1.8mm
Planar® DirectLight® Pro Series fine pixel pitch MicroLED video walls deliver beautiful images for a wide range of indoor fixed installation applications. With pixel pitches ranging from 0.9 to 1.8 mm, the Made in Europe Planar DirectLight Pro Series offers all the benefits of MicroLED technology, plus front-serviceability and high bandwidth, reducing deployment complexity while maximizing efficiency.
- 0.9, 1.2, 1.5 and 1.8mm pixel pitches
- Featuring MicroLED technology
- 2000-nit High Brightness Model with Standard Power Consumption
- Low Power Model with 500-nit standard brightness
- Complete models in 109”, 137”, 164” & 219” with HD, DHD & 4K resolutions
- EverCare Lifetime Warranty
- Made in Europe
Overview
Highlights
Brightness Meets Efficiency
High Brightness model, designed for maximum performance in high ambient light environments, delivers 2000 nits of sustained brightness at only 135 watts of power.
Energy Conscious Option
Low Power model delivers 500 nits of brightness with only 68 watts of power consumption, making it ideal for energy-conscious customers or applications with low ambient light conditions.
Optimized Design
Experience the optimal balance of form and function with 27″ and double-tall 36″ LED cabinets. Fewer cabinets mean faster installation, easier maintenance, and a seamless video wall experience with minimal visible seams.
High Bandwidth
With 5x the bandwidth of competitive solutions, the displays reduce total cost of ownership with fewer cabinets, cables, and internal components such as receivers and power supplies.

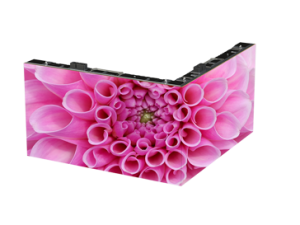

Turn the Corner
DirectLight Pro Series display modules and cabinets have 45° bevelled edges, allowing video walls to wrap around 90° corners for unique installations and opening up the displays for use in more creative applications.
Lifetime Protection
The Planar DirectLight Pro Series is backed by the EverCare™ Lifetime Limited Warranty, which covers the entire display, from the sub-pixels to the video controller, for as long as it is used in a fixed location.
Made in Europe
Thanks to our state-of-the-art production facility in the heart of Europe, Leyard Middle East can guarantee stable prices, short delivery times of just a few weeks, and high quality standards.

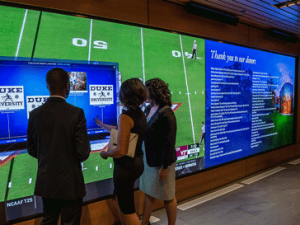

Enabling Interactivity
Transform your LED video walls into interactive, multi-touch canvases for collaboration, presentations, whiteboarding and annotation.
Complete™ Solutions
Off-the-Shelf or Customized Video Walls
The Planar DirectLight Pro Series is available in convenient sizes and resolutions to reduce the time, complexity and cost of designing and installing a custom LED video wall. We’ve packaged everything an organization needs into one complete solution. Simply select the video wall size and resolution that best suits your environment and application, and you get the complete package, including the powerful Planar WallDirector Video Controller.
Included:
- LED Display Cabinets
- Video Controller
- Remote Control
- Wall Mounts
- Trim
- Cables
- Spare Modules
Available Sizes:
109″ | 137″ | 164″ | 198″ | 219″
Add-Ons & Accessories
Planar WallDirector Cloud
Remotely monitor and maintain your display fleet with Planar® WallDirector™ Cloud, a secure, web-based dashboard for diagnostics, commands, troubleshooting, health monitoring and support tickets.
Low-Power Standby Mode
When not in use, the Planar® Smart Power Switch puts the video wall into a 1-watt low-power mode. The slim, LAN-connected power switch fits behind the ADA-compliant wall-mounted video wall and connects to the same network.
Specifications
| Feature Detail | DLPro 0.9B | DLPro 1.2B | DLPro 1.5B | DLPro 1.8B | DLPro 0.9M20 | DLPro 1.2M20 | DLPro 1.5M20 | DLPro 1.8M20 | DLPro 0.9M05 | DLPro 1.2M05 | DLPro 1.5M05 | DLPro 1.8M05 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pixel Pitch (mm) | 0.945mm | 1.26mm | 1.575mm | 1.89mm | 0.945mm | 1.26mm x 1.25mm | 1.575mm | 1.89mm | 0.945mm | 1.26 x 1.25mm | 1.575mm | 1.89mm |
| Cabinet Size (WxHxD) | 604.8 x 340.2 x 65.3mm | 604.8 x 340.2 x 65.3mm | 604.8 x 340.2 x 65.3mm | 604.8 x 340.2 x 65.3mm | 27″: 604.8 x 340.2 x 65.3mm | 36″: 604.8 x 680.4 x 65.3mm | 27″: 604.8 x 340.2 x 65.3mm | 36″: 604.8 x 680.4 x 65.3mm | 27″: 604.8 x 340.2 x 65.3mm | 36″: 604.8 x 680.4 x 65.3mm | 27″: 604.8 x 340.2 x 65.3mm | 36″: 604.8 x 680.4 x 65.3mm | 27″: 604.8 x 340.2 x 65.3mm | 36″: 604.8 x 680.4 x 65.3mm | 27″: 604.8 x 340.2 x 65.3mm | 36″: 604.8 x 680.4 x 65.3mm | 27″: 604.8 x 340.2 x 65.3mm | 36″: 604.8 x 680.4 x 65.3mm | 27″: 604.8 x 340.2 x 65.3mm | 36″: 604.8 x 680.4 x 65.3mm |
| Cabinet Resolution (WxH) | 640 x 360 | 480 x 270 | 384 x 216 | 320 x 180 | 27″: 640 x 360 | 36″: 640 x 720 | 27″: 480 x 272 | 36″: 480 x 544 | 27″: 384 x 216 | 36″: 384 x 432 | 27″: 320 x 180 | 36″: 320 x 360 | 27″: 640 x 360 | 36″: 640 x 720 | 27″: 480 x 272 | 36″: 480 x 544 | 27″: 384 x 216 | 36″: 384 x 432 | 27″: 320 x 180 | 36″: 320 x 360 |
| Pixel Density (pixel/m²) | 1119789 per m² | 629882 per m² | 403124 per m² | 279947 per m² | 1119789 per m² | 634547 per m² | 403124 per m² | 279947 per m² | 1119789 per m² | 634547 per m² | 403124 per m² | 279947 per m² |
| Module Resolution (WxH) | 320 x 180 | 240 x 135 | 192 x 108 | 160 x 90 | 320 x 180 | 240 x 136 | 192 x 108 | 160 x 90 | 320 x 180 | 240 x 136 | 192 x 108 | 160 x 90 |
| Brightness, max. (cd/m²) | 1000 nits | 1000 nits | 1000 nits | 1000 nits | 2000 nits | 2000 nits | 2000 nits | 2000 nits | 500 nits | 500 nits | 500 nits | 500 nits |
| LED Type | Commercial grade 3-in-1 Black SMD | Commercial grade 3-in-1 Black SMD | Commercial grade 3-in-1 Black SMD | Commercial grade 3-in-1 Black SMD | MicroLED FlipChip | MicroLED FlipChip | MicroLED FlipChip | MicroLED FlipChip | MicroLED FlipChip | MicroLED FlipChip | MicroLED FlipChip | MicroLED FlipChip |
| Frame Rate (Hz) | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| Video Controller | Brompton S8 & SX40 | Brompton S8 & SX40 | Brompton S8 & SX40 | Brompton S8 & SX40 | Planar® WallDirector and ColorLight Controllers | Planar® WallDirector and ColorLight Controllers | Planar® WallDirector and ColorLight Controllers | Planar® WallDirector and ColorLight Controllers | Planar® WallDirector and ColorLight Controllers | Planar® WallDirector and ColorLight Controllers | Planar® WallDirector and ColorLight Controllers | Planar® WallDirector and ColorLight Controllers |
| Warranty | EverCare Limited Lifetime Warranty | EverCare Limited Lifetime Warranty | EverCare Limited Lifetime Warranty | EverCare Limited Lifetime Warranty | EverCare Limited Lifetime Warranty | EverCare Limited Lifetime Warranty | EverCare Limited Lifetime Warranty | EverCare Limited Lifetime Warranty | EverCare Limited Lifetime Warranty | EverCare Limited Lifetime Warranty | EverCare Limited Lifetime Warranty | EverCare Limited Lifetime Warranty |
