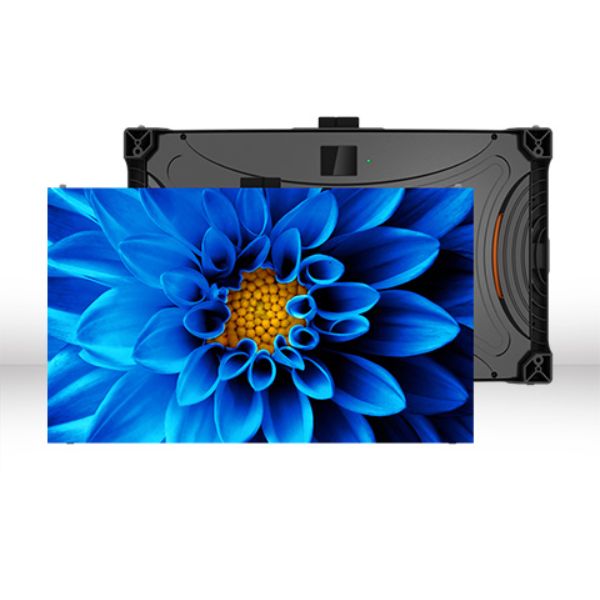

Leyard TVF Series
Stackable Front Access LED Video Walls
Offering pixel pitches of 0.9, 1.2, 1.5 and 1.8 millimeters, the Leyard TVF Series is a leader in fine pitch LED video wall displays. This series is recognized for its superior visual quality and ease of installation. The stackable, cableless design simplifies setup by eliminating cabinet-to-cabinet cabling, while front serviceability ensures quick and easy maintenance.
Plus, the TVF Series is manufactured in Europe to the highest European quality standards at our state-of-the-art factory in Prešov, Slovakia, ensuring short lead times, stable pricing and reduced transportation routes.
- Available in 0.9, 1.2, 1.5 and 1.8 mm pixel pitches
- Stackable design with zero cabinet-to-cabinet cabling
- Lightweight 27″ cabinet with slim cabinet profile under 3-inches
- Front installation and serviceability
- 16:9 aspect ratio and outstanding image quality for Full HD and 4K resolutions
- Comes with Leyard Middle East EverCare™ Lifetime Limited Warranty
- Made in Europe
Overview
Product Highlights

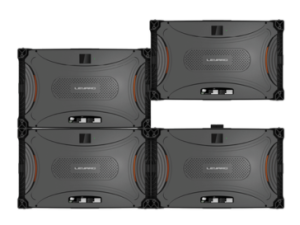

Stackable Design
TVF Series video walls have no cabinet-to-cabinet cabling and are assembled with a one-step process to connect embedded power and signal connectors from cabinet to cabinet by stacking them vertically.
Made in Europe
Thanks to our state-of-the-art production facility in the heart of Europe, Leyard Middle East can guarantee stable prices, short delivery times of just a few weeks, and high quality standards.

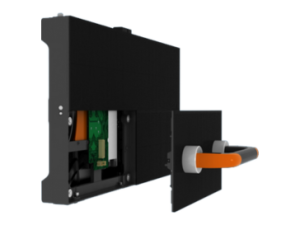

Easy Access
Front installation and service reduces the overall video wall footprint and service space required behind the wall.

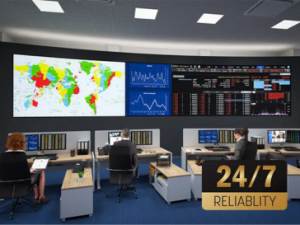

Always-On Reliability
The TVF Series is designed for mission-critical environments where displays are required to withstand extended or continuous operation.
Lifetime Protection
The Leyard Middle East EverCare™ Lifetime Limited Warranty covers the entire display, from the sub-pixels to the video controller.

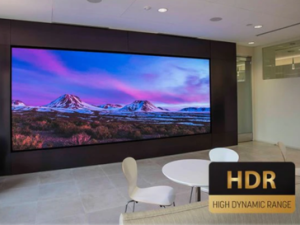

HDR Ready
TVF Series displays are ready for High Dynamic Range content, maximizing the image quality for brighter whites and darker blacks.
Add-Ons & Accessories

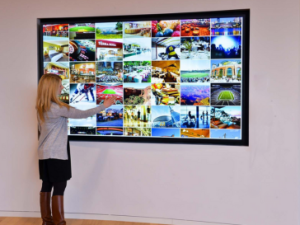

Enable Interactivity
Optimize displays for interactivity with a multi-point touch system ideal for collaboration, presentation and learning environments that require whiteboarding, annotation and better overall engagement.
Extended Ruggedness & Optics
Planar® ERO-LED™ (Extended Ruggedness and Optics™) proprietary protective coating provides durability in high-traffic and interactive environments. It offers a matte finish that maintains the visual performance of the video wall.
Complete™ Solutions
Off-the-Shelf or Customized Video Walls
The Leyard® TVF Complete™ Video Wall solution reduces complexity, cost, time and pressure of designing and installing an LED video wall. We’ve packaged everything an organization needs in one complete solution, at a solid value.
Available Sizes:
109″ | 137″ | 164″ | 198″ | 219″
Specifications
| Feature Detail | TVF0.9 | TVF1.2 | TVF1.5 | TVF1.8 |
|---|---|---|---|---|
| Part Number | TVF0.9 | TVF1.2 | TVF1.5 | TVF1.8 |
| LED Type | Commercial grade 3-in-1 Black SMD | Commercial grade 3-in-1 Black SMD | Commercial grade 3-in-1 Black SMD | Commercial grade 3-in-1 Black SMD |
| Brightness (max) | 600 / 800 | 600 / 800 | 600 / 800 | 600 / 800 |
| LEDs per Cabinet | 230.400 | 129.600 | 82.944 | 57.600 |
| Pixel Density | 1,119,789/m² | 629,882/m² | 403,124/m² | 279,947/m² |
| Pixel Pitch | 0.945mm | 1.26mm | 1.575mm | 1.89mm |
| Flatness (mm) | >0.5mm | ≤0.5mm | ≤0.5mm | ≤0.5mm |
| Cabinet Diagonal | 27.32in | 27.32in | 27.32in | 27.32in |
| Cabinet Area (m²) | 0.2058 | 0.2058 | 0.2058 | 0.2058 |
| Modules per Cabinet | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 |
| Module Resolution | 320×180 | 240×135 | 192×108 | 160×90 |
| Power Consum. (typ) | Single: 50W | Red: 53W | Single: 43W | Red: 53W | Single: 43W | Red: 53W | Single: 43W | Red: 53W |
| Cabinet Size (WxHxD) | 604.8×340.2×72.5mm | 604.8×340.2×72.5mm | 604.8×340.2×72.5mm | 604.8×340.2×72.5mm |
| Line Voltage | 100-240V | 100-240V | 100-240V | 100-240V |
| Cabinet Weight (kg) | 6,94kg – 7,76kg | 6,94kg – 7,76kg | 6,94kg – 7,76kg | 6,94kg – 7,76kg |
| Cabinet Res. (WxH) | 640×360 | 480×270 | 384×216 | 320×180 |
| Contrast Ratio | 7000:1 | 7000:1 | 7000:1 | 7000:1 |
| Color Uniformity | >97% | >97% | >97% | >97% |
| Refresh Rate | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz |
| Color Temp (K) | 3000 – 10000 | 3000 – 10000 | 3000 – 10000 | 3000 – 10000 |
| Viewing Angle | 160° H / 140° V | 160° H / 140° V | 160° H / 140° V | 160° H / 140° V |
| Video Input | 1x DVI, 1x HDMI | 1x DVI, 1x HDMI | 1x DVI, 1x HDMI | 1x DVI, 1x HDMI |
| Video Input Res. | 1920×1200 | 1920×1200 | 1920×1200 | 1920×1200 |
| Frame Rate | 50, 60Hz | 50, 60Hz | 50, 60Hz | 50, 60Hz |
| Control Input | USB | USB | USB | USB |
| Service Access | Front, Rear | Front, Rear | Front, Rear | Front, Rear |
| Duty Cycle | 24/7 | 24/7 | 24/7 | 24/7 |
| LED Lifetime | 100000hrs | 100000hrs | 100000hrs | 100000hrs |
| Environment | Indoor | Indoor | Indoor | Indoor |
| Power Supply | Single / Redundant | Single / Redundant | Single / Redundant | Single / Redundant |
| Storage/Op Temp | -20°/60°C | -10°/40°C | -20°/60°C | -10°/40°C | -20°/60°C | -10°/40°C | -20°/60°C | -10°/40°C |
| Storage/Op Humidity | 10-85% | 10-85% | 10-85% | 10-85% |
| Power Consum. (max) | 150W-159W | 130W-159W | 130W-159W | 130W-159W |
| Power Consum. (m²) | 729W-773W | 632W-773W | 632W-773W | 632W-773W |
| Power Consum. (typ) | 243W-258W | 209W-258W | 209W-258W | 209W-258W |
| Processing | 16-bit | 16-bit | 16-bit | 16-bit |
