Planar Simplicity M Series
Value digital signage solution with USB playback and on/off scheduling
Planar Simplicity M Series 4K LCD displays enable easy, high-definition digital signage streaming and media playback. Select displays are designed to mitigate cybersecurity threats and are ENERGY STAR® certified.
The displays of the Simplicity M Series have a sleek, slim design and functionality that thrive in commercial environments with regular business hours, such as retail stores, restaurants, medical offices and corporate meeting areas.
- Available size: 50″
- USB media playback
- ENERGY STAR® certified models
Overview
Highlights

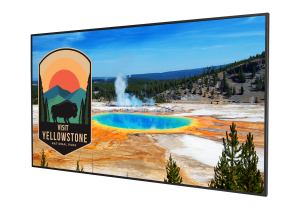

On Your Schedule
Simplicity M displays offer the ability to schedule automated power on/off settings and media playback times, so signage plays when it’s needed and displays save energy when it’s not.
Energy Efficiency
Our Simplicity M displays have earned the U.S. government’s ENERGY STAR® label, which identifies them as a solution that saves on operating costs and electricity.
Add-Ons & Accessories

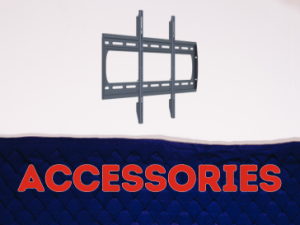

Mounts & More
A variety of adjustable and easy-to-use accessories are available for almost any application, whether you need a wall mount, ceiling mount, or table stand.
Specifications
| Feature Detail | SLM50 |
|---|---|
| Haze | 2% |
| Surface Treatment | – |
| Brightness, typ. (cd/m²) | 500 nits |
| Pixel Pitch (mm) | 0.285mm x 0.285mm |
| Cabinet Size (WxHxD) | 1128.4mm x 649.0mm x 63.5mm (44.4″ x 25.6″ x 2.5″) |
| Cabinet Size (WxHxD) with Handles | Not Applicable |
| Display Weight (kg) Shipping | 20 kg (43 lbs) |
| Operation Temperature (°C) | 0° to +40°C (32° to 104°F) up to 3000m |
| Operation Humidity (RH) | 20 – 85% RH (non-condensing) |
| Operating System | Proprietary OS based on Android 8.0. Google Play and third-party apps are not supported by Planar. |
| Storage | 16GB (4.5GB available) |
| ENERGY STAR® Certified | – |
| Cyber Security | – |
| Planar Part Number | 998-2763-01 |
| Protective Glass | – |
| Touch Technology | – |
| OS Compatibility | – |
| Display Resolution | Ultra HD (3840 x 2160) |
| Screen Size | 127cm / 50″ (diagonal) |
| Aspect Ratio | 16:9 |
| Display Technology | Direct-lit LED LCD |
| Viewing Angle (typ) | 178° |
| Backlight | LED |
| Backlight life (half brightness) | – |
| Response Time (typ) | 8 ms |
| Frame Rate (Hz) | 60Hz |
| Contrast Ratio | 4000:1 |
| Color Gamut | 72% NTSC |
| Display Color | >1 billion colors. Full 10 bit data path |
| External Connections | HDMI® 2.0 x 2 (HDCP 2.2), DVI-D x 1, VGA x 1, Media Player |
| Modes | 3840×2160 @ 24/25/30/60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 50/60Hz; 1080i @ 50/60 Hz |
| Display Control | IR, RS-232, LAN, HDMI-CEC, Keypad |
| Orientation | Landscape only |
| Bezel Width | 0.6″ (14.9mm) |
| Display Active Area (WxH) | 1095.8mm x 616.4mm (43.1″ x 24.3″) |
| Display Edge to Active Area | – |
| Display Weight (kg) | 15 kg (33 lbs) |
| Audio Input | PC Line In |
| Audio Output | PC Line Out |
| Speakers | 10W x 2 built-in |
| Enclosure | – |
| Mounting | VESA: 400mm x 400mm |
| Fanless | Yes |
| Line Voltage | 100-240V; 50/60Hz |
| Power Consumption (typ) | 113W (standby: <0.5W) |
| Options / Features | USB playback, logo-free bezel, lockable rear keypad |
| Approvals | FCC Class A, cTUVus, CE, RoHS |
| Security | – |
| Warranty | 2 years |
| Recommended Usage | Up to 16 hours per day |
| In the Box | SLM50 display, C14 connector power cord – 1.8m, HDMI cable – 1.8m, RS-232 cable, IR cable, remote control, cable clamps, Quick Start Guide |
| UPC | 8 10069 81038 6 |
