Planar Luminate Ultra W Series
Outdoor Full HD & 4K MicroLED Video Walls with High Brightness & GOB Protective Coating
MicroLED outdoor solution with 16:9 aspect ratio, high brightness and protective coating. Available pixel pitches: 1.3, 1.6 & 2.0mm
Planar® Luminate™ Ultra W Series MicroLED video wall displays are designed to bring detailed images and video to outdoor environments at close viewing distances. Their 16:9 aspect ratio is ideal for Full HD and 4K cinema and sports media, while the fine pixel pitch supports comfortable viewing from as close as 8 feet.
High brightness ensures visibility even in direct sunlight, and waterproof Glue-On-Board (GOB) technology withstands harsh weather conditions, making outdoor applications easy. They also shine in bright indoor environments.
- Preconfigured 115″, 145″, 173″ & 231″ sizes
- Customizable with 1.3, 1.6 & 2mm pixel pitches
- 3,000-nit brightness
- Protective GOB coating
Overview
Industry Awards
Product Highlights

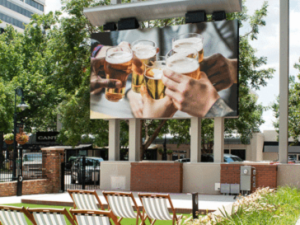

Bright in the Light
The displays are suitable for daylight applications with a high brightness of minimum 3000 nits, ideal for sports, concerts and digital signage, even in direct sunlight.

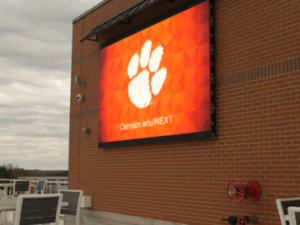

MicroLED Might
At less than half the size of standard LEDs, MicroLEDs deliver higher brightness, excellent color uniformity, better overall contrast and deeper blacks. They are also more energy efficient and produce less heat at the same brightness.

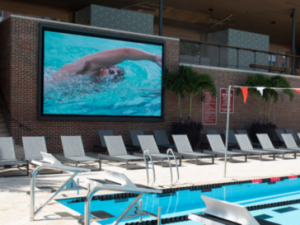

Weatherproof
The displays feature an IP65 Ingress Protection Rating, which means they are dustproof and safe from powerful water jets, making them an exciting and viable option even in harsh outdoor weather.

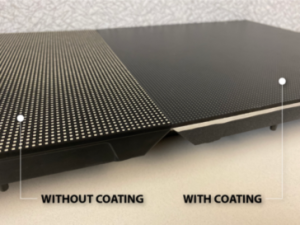

More Protection
The displays have a protective coating that fills the tiny gaps between the LEDs, making them more durable and weather-resistant. The coating also increases visual contrast for deeper black levels.

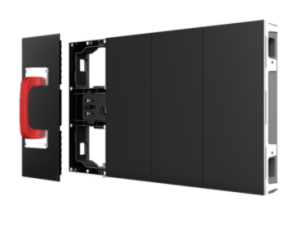

Easy Access
Front installation and service reduces the overall video wall footprint and virtually eliminates the need for service space behind the wall.
Added Assurance
Planar LED video walls come with a standard 3-year limited LED warranty for added peace of mind and investment protection.
Specifications
| LUW1.3 | LUW1.6 | LUW2.0 | |
|---|---|---|---|
| Pixel Pitch (mm) | 1.33mm | 1.67mm | 2.0mm |
| Module Resolution (WxH) | 120×270 | 96×216 | 80×180 |
| Module Size (mm) (WxHxD) | 160x360x20mm | 6.3″x14.17″x0.79″ | 160x360x20mm | 6.3″x14.17″x0.79″ | 160x360x20mm | 6.3″x14.17″x0.79″ |
| Module Composition (WxH) | 4×1 | 4×1 | 4×1 |
| Brightness, typ. (cd/m²) | 3000-4000 nits | 3000-4000 nits | 3000-4000 nits |
| Viewing Angle, Horizontal (°) | 170° | 170° | 170° |
| Viewing Angle, Vertical (°) | 170° | 170° | 170° |
| Refresh Rate (Hz) | 3840Hz | 3840Hz | 3840Hz |
| Lifetime (hrs) | 100000hrs | 100000hrs | 100000hrs |
| IP Level | IP65 | IP65 | IP65 |
| ⬇ Download Specs | ⬇ Download Specs | ⬇ Download Specs |

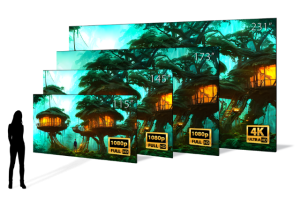

Complete™
Pre-configured Sizes & Resolutions
Planar® Luminate Ultra W Complete™ Full HD or 4K MicroLED video walls are available in convenient sizes and resolutions to reduce configuration time and complexity. Simply select the diagonal size and resolution that best suits your application and get everything in one complete, hassle-free solution.
Included:
- LED Display Cabinets
- Video Controller
- Wall Mounts
- Trim
- Cables
- Spare Modules
Available Sizes:
115″ | 145″ | 173″ | 231″
