Planar CarbonLight CLM Series
Thin, lightweight mesh LED displays for indoor/outdoor temporary/fixed applications
Mesh LED Display Thin and lightweight mesh LED displays for indoor or outdoor temporary or fixed applications, available in 5.9, 6.9 and 10.4mm pixel pitch
Planar CarbonLight™ CLM Series thin and lightweight mesh LED displays are designed for indoor or outdoor environments and feature transparent and non-transparent carbon fiber for low wind resistance and sound transmission for a unique viewing experience. The modular design, coupled with a high-strength carbon fiber housing, is suitable for a wide range of simple or complex hanging or free-standing applications.
- 5.9, 6.9, 10.4mm pixel pitches
- See-through and solid mesh designs
- Carbon fiber construction
- IP65 outdoor protection rating
Overview
Highlights
Carbon Fiber Strength
Planar CarbonLight LED display solutions feature a patented carbon fiber construction that makes them uniquely light, thin and strong. Their sophisticated mechanical design and innovative features enable fast and versatile installations.

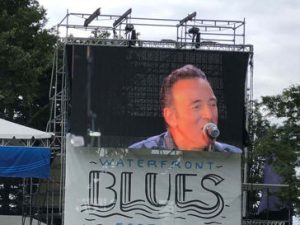

Weatherproof
The lightweight carbon fiber displays feature IP65 Ingress Protection, which means they are dustproof and can withstand powerful jets of water. The mesh design allows wind to pass through, making it an exciting option for outdoor events.

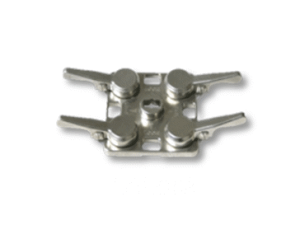

Quick Service Bracketry
The CarbonLight’s mounting system allows for quick service and allows displays to be removed and installed anywhere on the video wall without disrupting the overall layout.
Added Assurance
Planar CarbonLight CLM LED video walls come with a standard 3-year LED limited warranty for added peace of mind and investment protection.
Add-Ons & Accessories

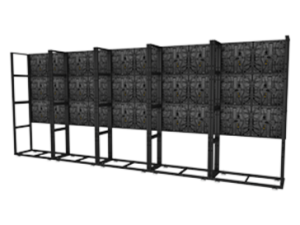

Modular Ground Support
Freestanding and hanging video walls of all sizes and shapes can benefit from the modular floor stand that simplifies setup and teardown. Add or remove frame sections to create the exact size video wall you need.

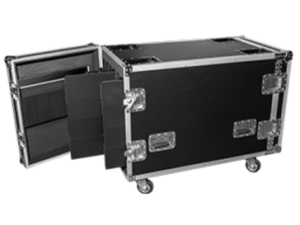

Flight Cases
Flight cases protect video wall cabinets during shipping, loading, and unloading while saving space and reducing weight. Flight cases are available in easy-to-use top or side access configurations.
Specifications
| Feature | CLM 5.9 | CLM 5.9 B | CLM 5.9S | CLM 5.9S B | CLM 6.9 | CLM10.4 |
|---|---|---|---|---|---|---|
| Pixel Pitch (mm) | 5.95 mm | 5.95 mm | 5.95 mm | 5.95 mm | 6.9 mm | 10.4 mm |
| Cabinet Resolution (WxH) | 84 x 168 px | 84 x 168 px | 84 x 168 px | 84 x 168 px | 72 x 144 px | 96 x 48 px |
| Cabinet Size (WxHxD) | 500 x 1000 x 71 mm (19.69 x 39.37 x 2.80 in) | 500 x 1000 x 71 mm (19.69 x 39.37 x 2.80 in) | 500 x 1000 x 71 mm (19.69 x 39.37 x 2.80 in) | 500 x 1000 x 71 mm (19.69 x 39.37 x 2.80 in) | 500 x 1000 x 45 mm (19.69 x 39.37 x 1.77 in) | 500 x 1000 x 45 mm (19.69 x 39.37 x 1.77 in) |
| Brightness, max. (cd/m²) | 5000 | |||||
| Color Temperature (K) | 6500 K | |||||
| Contrast Ratio | 2000:1 | |||||
