Indoor MicroLED Displays with COB Technology

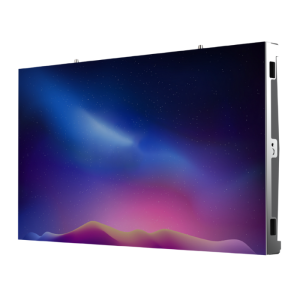

The Leyard® MG-2COB Series video wall delivers unmatched visual performance with the benefits of Chip-On-Board (COB) technology using flip-chip MicroLEDs. Available in 0.93, 1.25 and 1.56mm pixel pitches, these displays deliver high resolution, vibrant and reliable performance. The lightweight 16:9 cabinet design offers easy setup with front and rear installation and easy serviceability with front service access. The Leyard MG-2COB Series LED modules are IP65 rated for durability and attach directly to the cabinet frame without brackets ensuring a sleek, streamlined build.
- 0.93, 1.25 & 1.56mm pixel pitches
- Chip-on-Board (COB) MicroLED technology
- 16:9 cabinet design
- Supports front and rear installation
- Front service access for easy maintenance
Specifications
| MG-2-COB-0.9 | MG-2-COB-1.2 | MG-2-COB-1.5 | |
|---|---|---|---|
| LED Type | Full Flip Chip COB | Full Flip Chip COB | Full Flip Chip COB |
| Pixel Pitch (mm) | 0.93 | 1.25 | 1.56 |
| Module Resolution (WxH) | 160×180 | 120×135 | 192×108 |
| Module Size (mm) (WxHxD) | 150×168.75 mm | 150×168.75 mm | 300×168.75 mm |
| Unit Area (m²) | 0.2025 m² | 0.2025 m² | 0.2025 m² |
| Module Composition (WxH) | 4×2 | 4×2 | 2×2 |
| Cabinet Resolution (WxH) | 640×360 | 480×270 | 384×216 |
| Pixel Density (pixel/m²) | 1137778 per m² | 640000 per m² | 409600 per m² |
| Cabinet Size (WxHxD) | 600×337.5x 39.9 mm | 600×337.5x 39.9 mm | 600×337.5x 39.9 mm |
| Cabinet Weight (kg) | 4.3 kg | 4.3 kg | 4.3 kg |
| Cabinet Weight per m² (kg) | 21.5 kg | 21.5 kg | 21.5 kg |
| Brightness, max. (cd/m²) | 800 nits | 500 nits | 500 nits |
| Color Temperature (K) | 3000~10000 K, adjustable | 3000~10000 K, adjustable | 3000~10000 K, adjustable |
| Viewing Angle, Horizontal (°) | 170° | 170° | 170° |
| Viewing Angle, Vertical (°) | 150° | 150° | 150° |
| Contrast Ratio | 25000:1 | 25000:1 | 25000:1 |
| Line Voltage | AC100~240V | AC100~240V | AC100~240V |
| Power Consumption, max. (W/m²) | 505 W | 351 W | 400 W |
| Power Consumption, typ. (W/m²) | 175 W | 119 W | 125 W |
| Grey Scale Processing | 16 bits | 16 bits | 16 bits |
| Refresh Rate (Hz) | 1600-3840 Hz | 1600-3840 Hz | 1600-3840 Hz |
| Frame Rate (Hz) | 50&60 Hz | 50&60 Hz | 50&60 Hz |
| Lifetime (hrs) | 100000 hrs | 100000 hrs | 100000 hrs |
| Installation | Rear/Front | Rear/Front | Rear/Front |
| Module Maintenance | Front | Front | Front |
| PSU & Others Maintenance | Front | Front | Front |
| Operation Temperature (°C) | -10~40 °C | -10~40 °C | -10~40 °C |
| Operation Humidity (RH) | 10~80% no condensation | 10~80% no condensation | 10~80% no condensation |
| Storage Temperature (°C) | -20~60 °C | -20~60 °C | -20~60 °C |
| Storage Humidity (RH) | 10~85% no condensation | 10~85% no condensation | 10~85% no condensation |
|
