Indoor fine pitch LED displays with SMD technology

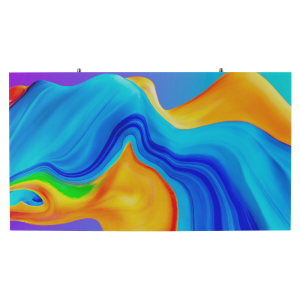

The Leyard® MG-2 Series is a line of indoor fine pixel pitch LED displays with Surface Mounted Device (SMD) technology designed for entry-level, versatile installations with long-term reliability. It offers a compact and efficient design without compromising performance. The Leyard MG-2 Series’ streamlined design ensures easy transport and set-up, while improved heat dissipation supports stable operation even during extended use.
- 1.56, 1.87 & 2.5 pixel pitches with SMD technology
- Supports front and rear installation
- Front service access for easy maintenance
- Slim, compact design
- Entry-level solution for a wide range of applications
Specifications
| MG2-1.5 | MG2-1.8 | MG2-2.5 | |
|---|---|---|---|
| LED Type | SMD-TOP | SMD-TOP | SMD-TOP |
| Pixel Pitch (mm) | 1.5625 | 1.875 | 2.5 |
| Module Resolution (WxH) | 192×216 | 160×180 | 120×135 |
| Module Size (mm) (WxHxD) | 300×337.5 mm | 300×337.5 mm | 300×337.5 mm |
| Unit Area (m²) | 0.2025 m² | 0.2025 m² | 0.2025 m² |
| Module Composition (WxH) | 2×1 | 2×1 | 2×1 |
| Cabinet Resolution (WxH) | 384×216 | 320×180 | 240×135 |
| Pixel Density (pixel/m²) | 409600 per m² | 284444 per m² | 160000 per m² |
| Cabinet Size (WxHxD) | 600×337.5×45 mm | 600×337.5×45 mm | 600×337.5×45 mm |
| Cabinet Weight (kg) | 4.5 kg | 4.5 kg | 4.5 kg |
| Cabinet Weight per m² (kg) | 22.2 kg | 22.2 kg | 22.2 kg |
| Brightness, max. (cd/m²) | 600-800 nits | 600-800 nits | 600-800 nits |
| Color Temperature (K) | 3000~10000 K, Adjustable | 3000~10000 K, Adjustable | 3000~10000 K, Adjustable |
| Viewing Angle, Horizontal (°) | 160° | 160° | 160° |
| Viewing Angle, Vertical (°) | 140° | 140° | 140° |
| Contrast Ratio | 5000:1 | 5000:1 | 5000:1 |
| Line Voltage | AC100~240V | AC100~240V | AC100~240V |
| Power Consumption, max. (W/m²) | 464 W | 420 W | 346 W |
| Power Consumption, typ. (W/m²) | 135 W | 115 W | 77 W |
| Refresh Rate (Hz) | ≥3840 Hz | ≥3840 Hz | ≥3840 Hz |
| Frame Rate (Hz) | 50&60 Hz | 50&60 Hz | 50&60 Hz |
| Lifetime (hrs) | 100000 hrs | 100000 hrs | 100000 hrs |
| Installation | Rear/Front | Rear/Front | Rear/Front |
| Module Maintenance | Front | Front | Front |
| PSU & Others Maintenance | Front | Front | Front |
| Operation Temperature (°C) | -20~40 °C | -20~40 °C | -20~40 °C |
| Operation Humidity (RH) | 10~90% no condensation | 10~90% no condensation | 10~90% no condensation |
| Storage Temperature (°C) | -30~60 °C | -30~60 °C | -30~60 °C |
| Storage Humidity (RH) | 10~80% no condensation | 10~80% no condensation | 10~80% no condensation |
|
