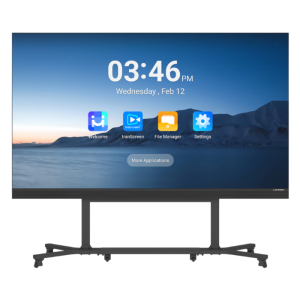

Ultimate all-in-one LED solution for smart collaboration
The Leyard M135 Series LED display provides a comprehensive all-in-one solution with full system certification, superior price/performance ratio, powerful operating system, and effortless screen casting function for multi-scenario spaces such as conference rooms, classrooms, lecture halls, or shopping malls, where it delivers crisp visual performance even in bright ambient light conditions that projectors can never achieve.
- 135″ Full HD resolution
- Built-in connectivity for collaboration
- Picture-in-Picture (PIP) and Picture-by-Picture (PBP) modes for content versatility
- Easy setup for quick, hassle-free deployment
- Made in Europe
Specifications
| M135 | |
|---|---|
| Watching Distance | ≥3m |
| Suggested Space | 40-60 m² |
| Video Output | HDMI OUT |
| Accessories | Standard Accessories: Power cord, Remote control, Magnetic tool, Wifi & Bluetooth dongle, Spare modules and other parts; Optional Accessories: Floor stand, Screen mirroring device, Electronic vacuum tool |
| Data Ports | USB2.0x2, USB3.0x1, RJ11 |
| LED Type | TOP SMD |
| Pixel Pitch (mm) | 1.5mm |
| Module Size (mm) (WxHxD) | 151.2×340.2 mm |
| Pixel Density (pixel/m²) | 403124 per m² |
| Brightness, max. (cd/m²) | 450 nits ±10% (adjustable) |
| Viewing Angle, Horizontal (°) | 160° |
| Viewing Angle, Vertical (°) | 150° |
| Contrast Ratio | 8000:1 |
| Line Voltage | 100-230 V |
| Power Consumption, typ. (W/Cabinet) | 540 W |
| Power Consumption, max. (W/m²) | 1600 W |
| Grey Scale Processing | 16 bits |
| Refresh Rate (Hz) | 3840 Hz |
| Frame Rate (Hz) | 50/60 Hz |
| Lifetime (hrs) | 100000 hrs |
| Installation | Wall mounted/Floor standing |
| Service Access | Front Access |
| Operation Temperature (°C) | 0~40 °C |
| Operation Humidity (RH) | 10 – 90% (No condensation) |
| Storage Temperature (°C) | -10~60 °C |
| Storage Humidity (RH) | 10 – 90% (No condensation) |
| Operating System | Android 13 |
| Display Dimensions (WxHxD) | 3035×1821.5×84 mm |
| Display Weight (kg) | 190±5 kg (Net), 280±5 (Gross) |
| Dimensions (WxHxD) including optional stand | 3035.2×2157.3×906 mm |
| Approvals | CB, cTUVus, CE, FCC, IC, ROHS, WEEE, REACH |
| Video Input | HDMI2.0x2 |
| Audio Output | SPDIF, 3.5mm Audio |
| Control Input Type | Gigabit Ethernet, Type-C |
|
Download Specs |
