Durable LED Floor with Fast Setup & Sleek Matte Finish

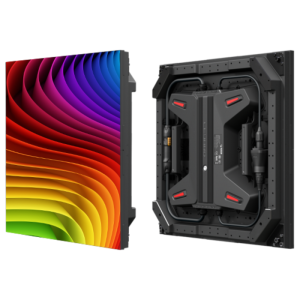

The Leyard ALF Series is a line of high-performance LED flooring known for its durability, reliability, and exceptional visual quality.
Designed for quick installation and front/top maintenance, the Leyard ALF Series provides optional dual power and signal redundancy for enhanced reliability. The series features a high grayscale chip and high refresh rate, supporting up to 240 Hz for exceptional visual performance. Its black crystal matte surface reduces reflections for high contrast and optimized visuals.
- 1.5, 1.9 and 2.6mm pixel pitches
- Aluminum design with edge protection
- Supports >450kg per display
- Modular design with front/top service for easy maintenance
- Redundant power and signal for high reliability
- High contrast with reduced reflectivity
Specifications
| ALF1.5-S1 | ALF1.9-S1 | ALF2.6-S1 | |
|---|---|---|---|
| Scan Ratio | 1:32 | 1:16 | 1:12 |
| Weight Bearing Capacity per m² | 2000kg/m² | 2000kg/m² | 2000kg/m² |
| LED Type | SMD1212 | SMD1212 | SMD1212 |
| Pixel Pitch (mm) | 1.56mm | 1.95mm | 2.60mm |
| Pixel Density (pixel/m²) | 409600 per m² | 262144 per m² | 147456 per m² |
| Cabinet Resolution (WxH) | 320×320 | 256×256 | 192×192 |
| Cabinet Size (WxHxD) | 500x500x74mm | 500x500x78mm | 500x500x78mm |
| Power Supply | Single PSU | Single PSU | Single PSU |
| Cabinet Weight (kg) | 11kg | 11kg | 11kg |
| Modules per Cabinet (WxH) | 4 | 4 | 4 |
| Module Size (mm) (WxHxD) | 250x250mm | 250x250mm | 250x250mm |
| Module Weight (kg) | 0.5kg | 0.5kg | 0.5kg |
| Brightness, max. (cd/m²) | 700 nits | 700 nits | 700 nits |
| Color Temperature (K) | 3000-9000K | 3000-9000K | 3000-9000K |
| Contrast Ratio | 3000:1 | 3000:1 | 3000:1 |
| Viewing Angle, Horizontal (°) | 140° | 140° | 140° |
| Viewing Angle, Vertical (°) | 140° | 140° | 140° |
| Grey Scale Processing | 14bit | 16bit | 14bit |
| Refresh Rate (Hz) | 3840 Hz | 3840 Hz | 3840 Hz |
| Frame Rate (Hz) | 50&60 Hz | 50&60 Hz | 50&60 Hz |
| Line Voltage | 100-240V AC, 50/60Hz | 100-240V AC, 50/60Hz | 100-240V AC, 50/60Hz |
| Power Consumption, max. (W/m²) | 800 W | 800 W | 800 W |
| Power Consumption, typ. (W/m²) | 270 W | 270 W | 270 W |
| Operation Temperature (°C) | -20° to 40° C | -20° to 40° C | -20° to 40° C |
| Storage Temperature (°C) | -35° to 60° C | -35° to 60° C | -35° to 60° C |
| Operation Humidity (RH) | 10-90% RH | 10-90% RH | 10-90% RH |
| Storage Humidity (RH) | 10-85% RH | 10-85% RH | 10-85% RH |
| Cabinet Material | Aluminum Dolly | Aluminum Dolly | Aluminum Dolly |
| IP Level | IP40 | IP40 | IP40 |
| Service Access | Front | Front | Front |
| Environment | Fix, Rental | Fix, Rental | Fix, Rental |
| Installation | LED Floor | LED Floor | LED Floor |
| Lifetime (hrs) | 100000hrs | 100000hrs | 100000hrs |
|
